Pre-Wired Control Panels


¡For the very first time Automation in one-stop-purchase!




Four simple steps to have your application up and running:

1
Get your Sub-Panel
2
Install
3
Connect to external devices
4
Download your program




Our Pre-wired control panels allow you:

  • Getting of control panel with PLC, Power supply, connectors, fuses, wires and labels, for the money you pay for a competitors’ PLC.
  • Installation in just minutes: only four screws.
  • Battery support because our Power supply can behave as an UPS (Uninterruptible Power Supply), in the same control panel. After a power failure, the batteries will start its charging process and your control panel remains connected to the electric power network.
  • Our interface relays are not the conventional ones. You can activate them (close their contact) by pulling a small lever on top of them...by-passing the control signal from the PLC. This is an excellent tool to immediately diagnose failures in control systems.
  • RS485 or RS232 ports Ethernet/Internet ready at US 0. (Only in some models). With most ofthe PLCs of the competition you have to pay for it.
  • You can add more options: Real time clock/calendar, more inputs/outputs, displays, etc
  • With our Universal analog modules you can have up to 8 independently programmable channels that can be Thermocouple (any), Voltage (0-5, 0-10, ±10) and Current (4-20 mA or 0-20 mA)
  • All the advantages of using ladder or ladder+BASIC as a programming or simulation method







Characteristics:

  • Compatible with Boxes and Enclosures from Hubble Weigmann.
  • Includes Switching power supplythat behaves as a UPS, (Batteries not included)
  • Fuses and connectors.
  • Fully wired and labeled.
  • Panel, assembly and pricing: miniature





Available models

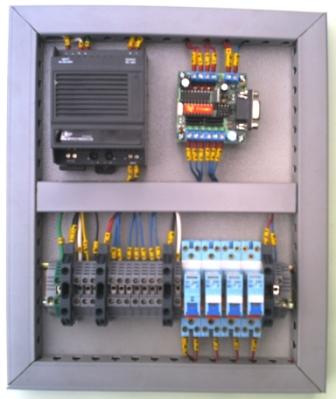

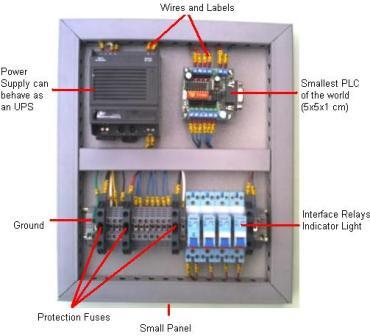

TP - 6/4

6 x DC inputs.
4 x 13 Amp. Relay outputs
Manual relay activation levers.
Based on our E10 PLC
Protection fuses
Dimensions 31.1 x 26.0 x 3.0 cm.

ONLY US 379



TP - 888

8 x DC inputs.
8 x 13 Amp. Relay outputs
Manual relay activation levers.
8 x Analog inputs (0-5 VDC)
Based on our PLC T100
Dimensions 31.1 x 26.0 x 9 cm.

ONLY US 930

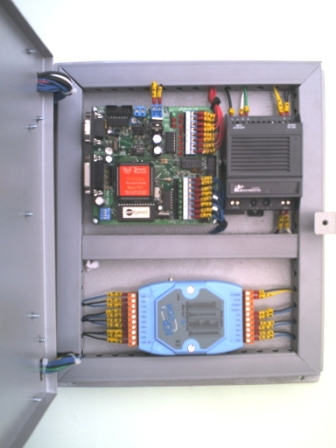

Upper Level

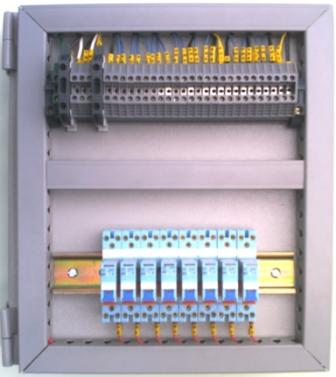

Lower Level




TP - 888U

 8 x DC inputs.
8 x 13 Amp.Relay outputs
Manual relay activation levers.
8 x Analog inputs (0-5 VDC)
8 x Universal inputs (Thermocouple, voltage , current)
Based on our PLC T100
Dimensions 31.1 x 26.0 x 9 cm.

ONLY US 1330

STARTER KITS

TP 6/4 SK = Panel + Software + Programming cable US 400
TP 888 SK = Panel + Software + Programming cable US 990
TP 888U SK = Panel + Software + Programming cable US 1390



Options

†††††††††††††††††††††††††† ††††††††††††††††††††††††
Clock/calendar
Displays and HMIs
Analog modules



For more information please, CONTACT US, let us know what you need!
