Windows CE Compact Controller
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
We wellcome a revolutionary concept in automation

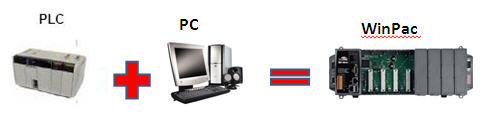

Integration of a
PC and a PLC To obtain the best of both worlds ! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If you need…
A SCADA
A PLC
A Normal/Industrial Computer
A Windows Licence
Bring data to the company PC-network
You just need a WinPac… to have it all! |
|
|
|
|
Just take a look to the features that you won't find in any PLC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
WinPAC-8x46 Series (WP-8146/8446/8846) is the new generation WinCE based PAC (Programmable Automation Controller). It features the powerful InduSoft Web Studio and ISaGRAF. InduSoft is a powerful integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Super-visory Control and Data Acquisition (SCADA) systems. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages (LD, ST, FBD, SFC, and FC). WinPAC-8x46 equips a PXA270 CPU (520MHz) running a Windows CE.NET 5.0 Operating System, variant connectivity (10/100 Base-TX dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 USB port) and 1/4/8 slots for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). 128 MB SRAM, 512 KB dual battery backup SRAM, 96 MB FLASH & 16 GB microSD are included. For redundant support: dual Watchdog Timers, redundant power inputs, dual battery backup SRAM, and dual Ethernet Ports are provided. WinPAC-8x47 Series will definately upgrade your system! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

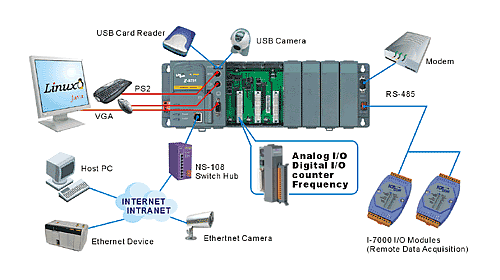

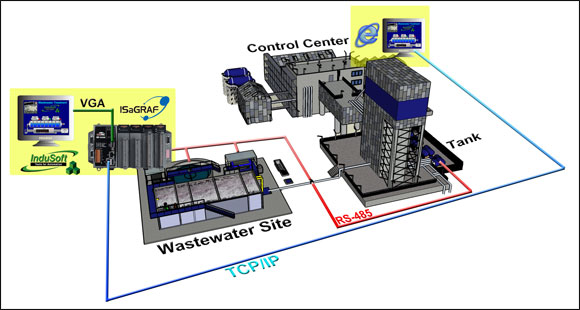

WinPAC Indusoft & ISaGRAF Total Solution |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WinPAC-8000 Software Features
- Windows CE.NET 5.0
- Remote Maintenance via FTP Server and VCEP software
- Built-in OPC Server (Quicker)
- Rich Software Solutions (VS.NET 2003/2005/2008 and eVC)

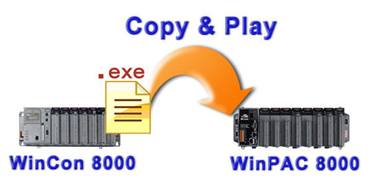

- Upgrading applications from WinCon-8000 to WinPAC-8000 just Copy and Play
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

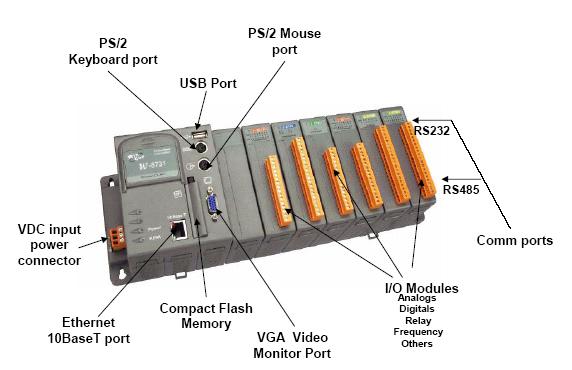

- WinPAC-8000 Hardware Features
- Built-in VGA Port
- I/O Module Hot Swap Ability (only for high profile I-87K modules)
- Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
- Built-in Flash Disk (96MB)
- Dual Watchdog Timer, Battery-Backup (512KB), and Ethernet Port
- Redundant Power Input

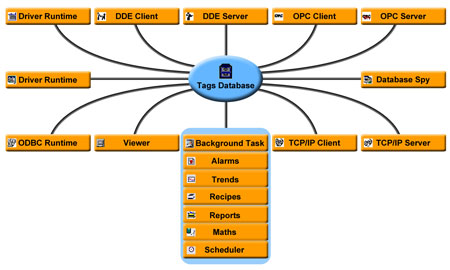

- InduSoft Web Studio General Features
IWS applications run on microcomputers connected to real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, application tags databases, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and security systems.
- Intuitive scripting language with more than 100 standard functions is provided.
- Conform to industry standards such as Microsoft.NET, OPC, DDE, ODBC, XML
- Full-Featured WinCE-based run-time environment (CE View).
- Dynamic library of symbols - customizable.
- ActiveX container (Windows NT/2000/XP/CE).
- Automatic e-mail (SMTP) and dial-up connection interface supported.
- Provides multi-level security for applications, including the Internet and Intranet.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ISaGRAF General Features
- Support five IEC61131-3 languages, LD, ST, FBD, SFC, IL plus FC.
- Modbus RTU/TCP protocol to integrate to SCADA software and HMI
- Controller to Controller Data Exchange via Ethernet: Ebus.
- All I-7000 & I-87K series I/O modules can be integrated as remote I/O modules.
- Auto-scan I/O : Automatically scan I/O boards & declare I/O variables.
- Motion: Motion control is available when I-8091 boards integrated.
- Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running on your PC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Specifications & Additional Information |
|
|
| |
| System Software |
OS |
Windows CE 5.0 |
.Net Compact Framework |
2.0 |
Embedded Service |
FTP Server, Web Server |
| Development Software |
| InduSoft Software |
InduSoft Web Studio v6.1 Service Pack 3 |
| ISaGRAF Software |
ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Others |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| Web Service |
| Web HMI |
Support Web HMI function, PC running Internet Explorer can access to the WP-8x46 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| Power Supply |
| Input Range |
+10 ~ +30 VDC (unregulated) |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Protection |
WP-8146: 1.0 A, 5 V supply to CPU and backplane; 0.6 A, 5 V supply to I/O expansion slots, total 8 W
WP-8446: 1.1 A, 5 V supply to CPU and backplane; 4.9 A, 5 V supply to I/O expansion slots, total 30 W
WP-8846: 1.2 A, 5 V supply to CPU and backplane; 4.8 A, 5 V supply to I/O expansion slots, total 30 W |
| Consumption |
WP-8146: 7.3 W (0.3 A @ 24 V);
WP-8446: 9.1 W (0.38 A @ 24 V);
WP-8846: 9.6 W (0.4 A @ 24 V); |
| General Environment |
| Temperature |
Operating: -25 °C ~ +75 °C ( -13 ° F ~ +167 ° F) ,
Storage : -30 °C ~ +85 °C ( -40 ° F ~ +176 ° F) |
| Humidity |
5 % ~ 95 % RH (non-condensed) |
| System |
| CPU |
CPU: PXA270, 32-bit and 520 MHz or compatible |
| Dual Watchdog Timer |
Watchdog: Dual Watchdog Timer |
| RTC (Real Time Clock) |
Gives hour, minute, sec, day of week, day of month, month & year, valid up from 1980 ~ 2079 |
| SRAM |
128 MB |
Dual Battery Backup SRAM |
512 KB (for 5 years data retain while power off) |
| FLASH |
96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
Expansion Flash Memory |
microSD socket with 16 GB flash card |
| EEPROM |
16 KB, Data retention: 40 years. 1,000,000 erase/write cycles |
| I/O Slots |
WP-8146: 1 slot (slot0); WP-8446: 4 slots (slot0 ~ slot3); WP-8846: 8 slots (slot0 ~ slot7);
Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards
I/O Module Hot Swap Ability: for High Profile I-87K only |
| Rotary Switch |
Yes (0~9) |
| DIP Switch |
WP-8446 & WP-8846: Yes, 8 bits DIP Switch; WP-8146 : no DIP Switch |
| LED, NET ID |
1 programmable LED indicator. NET ID: From 1 ~ 255, set by software |
| Unique Serial Number |
Yes,64-bit hardware unique serial number |
| Serial Ports |
| VGA Port |
1 VGA port (800 x 600 resolution) |
| USB Port |
one USB 1.1 Host ports for USB mouse, keyboard or USB drive |
COM0 |
Internal communication with the I-87K High Profile modules in slots |
| COM1 |
RS-232 (RxD, TxD, and GND); Non-isolation; Speed: 115200 bps max. |
| COM2 |
RS-485 (D2+, D2-; self-tuner ASIC inside); 2500 VDC isolation for 1 slot controller and 3000 VDC isolation for 4/8 slots controller; Speed: 115200 bps max. |
| COM3 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232,
DATA+ and DATA- for RS-485); Non-isolation;
Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.) |
| COM4 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation; Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.) |
Dual Ethernet Ports |
2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX Ethernet Controller
(Auto-negotiating, Auto MDI/MDI-X, LED indicator)
Please use NS-205/NS-208 Industrial Ethernet Switch. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A simple equation with a surprising result |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The
users of PLCs will find a HMI, Control Logic and a SCADA .. All under
Windows environment |
|
The
users of PCs will find a rugged platform for harsh environments and the
reliable Windows CE.net programming |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

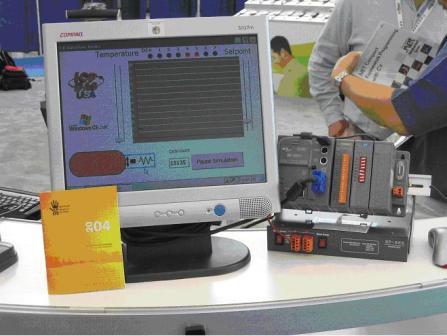

Our WinPac and Microsoft
Microsoft has started to promote our
WinPac as a prime solution for Windows CE.net in automation industry.
And they have showed our WinPac in
many shows including this Microsoft Windows Embedded Developers'
Conference 2004 in San Diego. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
How
to order a WINPAC
All
of our controllers come with WindowsCE 5.0 pre-installed and have
the same configuration:
PXA270, 32-bit and 520 MHz or compatible CPU, 128MB SDRAM, 48MB (32MB for OS image, 14MB for built-in Flash disk, 2MB for registry) Memory Flash , 16KB
EEPROM, Real time clock, Ethernet 10BaseT port, VGA Video port,
two PS/2 ports for Mouse and Keyboard, a compact flash memory
of 128MB , one port 1.1USB.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TO PROGRAM You can develop your own application using VB.Net, VC.Net or C++ for Windows CE or you can use a Development software
Indusoft:To have the SCADA U$ 550
ISaGRAF: To write the control program U$ 879 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

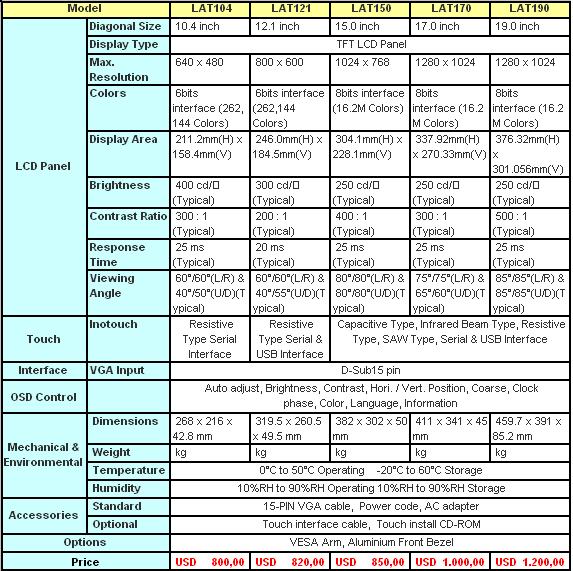

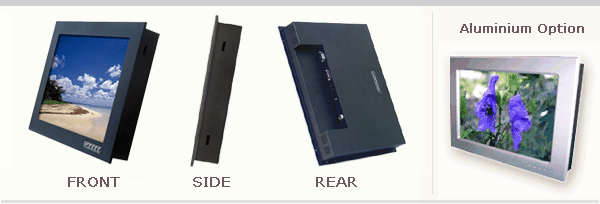

TOUCH SCREEN MONITORS
FULLY COMPATIBLE WITH WINPAC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ISaGRAF
ISaGRAF is composed of two main components.
The application development Workbench provides all of the internationally standard IEC61131 control languages. The output of the development environment is selectable as either portable "C" source code or TIC (target independent code). The ISaGRAF Virtual Machine is a powerful, optimized and very fast control engine that executes the TIC.
The Virtual Machine (or control target) and all options are offered ready to use on NT (2000), Linux RTAI, Windows CE 3.0 and QNX 4.25. Additionally, the virtual machine has been designed such that it's source code can be available in a toolkit format, providing portability to any OS, or even use it without an OS, and on any hardware platform.
Ideal for small embedded-applications, its robust design can handle a very large number of IO points. Multiple Virtual Machines can run on the same processor, at different scan rates. Multiple processors can be incorporated in a single project, allowing for different processors and different operating systems in a single application. Bindings provides for transparent use of other Virtual Machine data; local or across a network or communication link.
The ISaGRAF series of toolkits give you the ability to write your own I/O drivers, add market specific function blocks, connect to higher level systems, or conveniently brand label the product. This becomes a unique packaging or your
own value added intellectual property.
Ideal for small embedded-applications, it's robust design can handle a very large number of IO points. Multiple Virtual Machines can run on the same processor, at different scan rates. Multiple processors can be incorporated in a single project, allowing for different processors and different operating systems in a single application. Bindings provides for transparent use of other Virtual Machine data; local or across a network or communication link.
The ISaGRAF series of toolkits give you the ability to write your own I/O drivers, add market specific function blocks, connect to higher level systems, or conveniently brand label the product. This becomes a unique packaging or your
own value added intellectual property.
The Enhanced options for ISaGRAF transform this outstanding controller into a top of the line PLC, DCS or RTU. The controller gains features such as data quality, millisecond time stamping, sequence-of-events, trending, alarming, processor synchronization, GPS support and redundancy. It is no wonder that all of the major suppliers of automation solutions are using the ISaGRAF technology in their new generation of products. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CPUs |
|
|
|
|
|
|
|
|
|
|
|
WP-8146-1500 1 slot base, Indusoft 1500 tags and ISaGRAF Windows CE Controller
$2,999.00
WP-8441 4slotbase,520MhzCPU,48MBFlash,128MBSDRAM,VGAPort,1GBMicro SD, 10 /100 MB Ethernet Ports, USB Port and 4 Serial ports
$1,599.00
WP-8446 4 slot base, Indusoft 300 tags and ISaGRAF Windows CE Controller
$2,299.00
WP-8446-1500 4 slot base, Indusoft 1500 tags and ISaGRAF Windows CE Controller
$3,199.00
WP-8447 4 slot base, ISaGRAF Windows CE controller
$1,799.00
WP-8449 4 slot base, Indusoft 300 tags Windows CE Controller
$2,199.00
WP-8449-1500 4 slot base, Indusoft 1500 tags Windows CE controller
$2,899.00
WP-8841 8slotbase,520MhzCPU,48MBFlash,128MBSDRAM,VGAPort,1GBMicro SD, 10 /100 MB Ethernet Ports, USB Port and 4 Serial ports
$1,699.00
WP-8846 8 slot base, Indusoft 300 tags and ISaGRAF Windows CE Controller
$2,399.00
WP-8846-1500 8 slot base, Indusoft 1500 tags and ISaGRAF Windows CE Controller
$3,199.00
WP-8847 8 slot base, ISaGRAF Windows CE controller
$1,899.00
WP-8849 8 slot base, Indusoft 300 tags Windows CE Controller
$2,299.00
WP-8849-1500 8 slot base, Indusoft 1500 tags Windows CE controller
$2,999.00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Expansion bases |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
-
I-8430-G: Ethernet Expansion with four slots US799
-
I-8830-G: Ethernet Expansion with eight slots US859
-
I-87K4-G: RS485 Expansion with four slots US205
-
I-87K5-G: RS485 Expansion with five slots US249
-
I-87K8-G: RS485 Expansion with eight slots US309
-
I-87K9-G: RS485 Expansion with nine slots US319
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Analog
Modules
I-87013W: 4 RTD inputs US489
I-87017W: 8 analog V/ I inputs US379
I-87018W: 8 Thermocuple inputs US399
I-8017HW: 8 analog V/ I inputs, 14-bit 100KHz samp.rate US739
I-87019RW: Universal 8 Analog V, I or thermocuple with HV protection US559
Digital input/output modules
I-87051W: 16 DC inputs US179
I-87052W: 8 isolated DC inputs US179
I-87053W: 16 isolated DC inputs US209
I-87054W: 8 DC inputs and 8 isolated DC outputs
US229
I-87055W: 8 DC inputs and 8 isolated DC outputs US169
I-87057W: 16 DC open collector output US179
I-87058W: 8 isolated AC/DC inputs 250Volts US209
I-87063W: 4 isolated DC inputs y 4 isolated relay outputs US189
|
|
I-8050W:
Universal 16 DC inputs/ outputs program US209
I-8051W: 16 DC inputs US169
I-8052W: 8 isolated DC inputs (Differential ) US159
I-8053W: 16 Isollated DC inputs (Singe termination) US199
I-8054W: 8 Isol DC inp and 8 Isolated DC out .Open Col
US209
I-8055W: 8 DC inputs and 8 DC open Collector outputs US189
Motion Control modules
I-8090W: Three axis module, encoder 16 bit US489
I-8091W: Stepper motor/servo control module, two axis. US529
Communication
modules RS-232/RS-422/RS-485
I-8112iW: Two RS-232 ports US209
I-8114W: Four RS-232 ports US229
I-8142iW: Two isolated RS-422/485 ports US229
I-8144iW: Four isolated RS-422/485 ports US319
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| IND-UNL00-NT |
|
Advance Server Upgrede License |
US 7.470 |
|
|
|
| IND-64520-NT |
|
Control Room (engineering + run-time) 64.000 tags |
US 4.974 |
|
|
| IND-40520-NT |
|
Operator Workstation 4.000 tags |
US 2.595 |
|
|
| IND-15520-NT |
|
Local Interfase for Windows NT/2000/XP 1.500 tags |
|
US 1.095 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parallel Hardkey for Windows NT Licensees |
|
|
|
|
|
|
|
US 60 |
|
|
| IND-Hardkey |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
USB Hardkey for Windows NT Licenses |
US 60 |
|
| IND-USBHK |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Run-Time Licenses |
|
|
|
| IND-40520-RT |
Operator Workstation for Wndows NT/2K/XP 4.000 tags |
US1.545 |
| |
|
|
| IND-920NT-RT |
Local Interfase for Windows NT/2000/XP Run-Time Licenses Only 1.500 tags |
US 645 |
| |
|
|
| IND-15002NT-RT |
Lite for Windows NT/2000/XP Run-Time Licenses Only 150 tags |
US 265 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Download
a
12 pages brochure |
|
|
|
|
|
|
|
Don't forget to take a look to our really low
cost PLCs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For any additional information please CONTACT US,
let us know what you need!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
© LATIN TECH 2005 |
|
|
|
|
|
|
|
|
|
|
|
|
|
