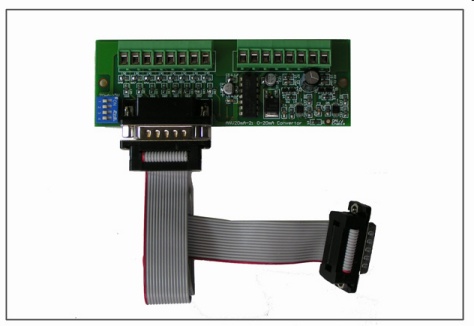

AN20MA-2

2/8 Channel 0-5V to 0-20mA Interface converters & terminals





The AN20MA-2 is designed to connect easily to a FMD or F-series PLC and converts up to 2 channels of 0-5V analog output voltage from the PLC to 0-20mA current loop for controlling external 0-20mA or 4-20mA devices. In addition this device provides buffered 0-5V output for DAC #3 and #4.

AN20MA-2 also converts up to 8 channels of 0-20mA or 4-20mA analog signals from field devices, remote sensors or other controllers into 0-5V analog input signals that the FMD or F-series PLC accepts.

The AN20MA-2 requires a 12 to 24V DC power supply to power its 20mA current loop outputs.








Notes:

AN20MA-2 is not designed for direct connection to T100MD+ or T100MX+ PLCs due to different location of the analog output pins on T100MD+/T100MX+ PLCs.

2) A 30 cm (1 ft) long DB15 male-to-female connecting ribbon cable is included with the AN20MA-2 for quick connection to the PLC's analog port. Two blocks of 8-pole, detachable screw terminal provides simple wiring of analog field devices AN20MA-2.





Documentation:

AN20MA-2 Installation Guide
