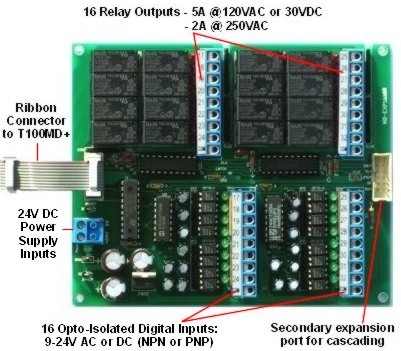

EXP1616R

Expansion I/O board adds 32 additional digital I/Os to any FMD, F-series or T100MD+ PLC models, as follow:





16 Opto-isolated Digital Inputs (9-24V)
- AC inputs - 9 to 24V; or
- NPN DC inputs - 9 to 24V; or
- PNP DC inputs - 9 to 24V.

16 Voltage-free Relay Outputs
5A @ 24V DC or 120V AC; or
2A @ 250V AC
Every 8 outputs share a common terminal.

Can be cascaded or mixed with EXP4040 to provide up to maximum of 128 digital inputs and 128 digital outputs for any T100MD+ or F-series PLC model.

Dimension: .5.0"(L)x 4.5"(W) x 0.8"(H)









              EXP1616R Installation Guide
