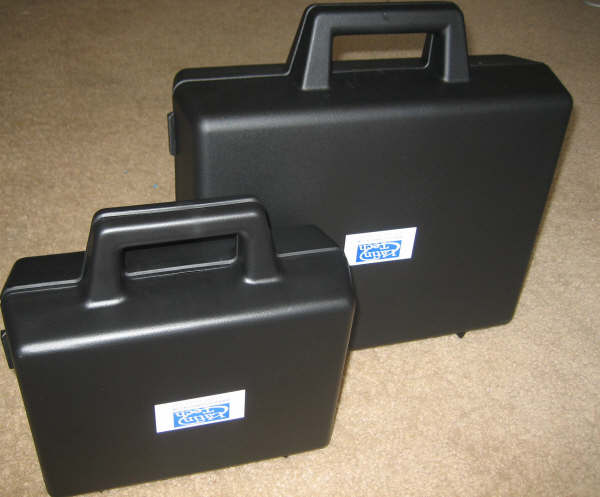

Our PLC trainer PTS T100
is a powerful tool for industrial automation developers to save time and
money when quick prototyping is needed.Educational institutions have found that our trainers are the best way to train learners in both simple and sophisticated Programmable Logic Controllers ( PLCs) either with classic or modern control techniques
Most of the other training equipments for PLCs and in the market only allow computer simulation for loads and programs. In our case, in addition to the simulation, our PLC Trainer PTS T100 can be connected to real devices or loads.
PLC Trainers.
Why to use software simulators for training when you can have both :
Simulator and PLC trainer for much less cost.
With these powerful training stations you can have your automation projects running in just minutes!
No major wiring required
We welcome any technical institutes and colleges to use the TRiLOGI software and PLC Trainers to train students on ladder logic programming at no charge at all! We would appreciate it if you could email to us at: sales@latin-tech.net to inform us that you will be providing a link to our website at: www.lt-automation.com so that the students can download the TRiLOGI software from our web page to do their homework! Suggestions and feedback on our products would be greatly appreciated. Please tell your friends and colleagues about the program if you enjoy using it.
Please visit this Internet Trilogi PLC software Tutorial
by Prof T.C. Chang, Purdue University,
Indiana.
"I use TRiLOGI in the college classroom. I have each student download and install TRiLOGI on their home computer, and I then give them programming assignments to do at home. They individually write, run and debug their PLC programs, and then email their program files to me for testing and grading. Since TRiLOGI will simulate PLC operation off-line, each student is able to obtain hands-on programming and debugging experience without having to wait for their turn on an expensive laboratory PLC. The students enjoy using TRiLOGI because they can see their programs run at home without loading them into an actual PLC, it is easy to learn, and the cost for the off-line version is zero."
Prof John Hackworth, Old Dominion Univeristy
www.eng.odu.edu
Comments from Professor Bo Barry. University of North Carolina
“In reference to the proposal from Latin-tech, Inc, it should be noted that they are the only company providing ALL of the components required, and ALL of the capabilities required for the PLC trainers.
They are the only company providing PLCs with Ethernet & Internet connectivity at zero cost. Additionally the system, AS PROVIDED BY Latin Tech, are programmable in normal ladder logic, in BASIC, in C, and their unique software allows control & monitoring thru Microsoft EXCEL spreadsheets.
Their units are very popular both in industry (for use as PLCs and as trainers) and at many universities, including Old Dominion, Purdue, Kent State, State Univ of NY, and others.
A significant amount of time was spent researching this item, and it is felt that the systems as provided by Latin Tech, will not only completely satisfy our educational needs, but that they are by far the most economical systems providing all of the features available, including the items mentioned above.”
Ambrose G. Barry
Assoc Prof
Eng Tech Dept
UNCCAttention Educational Institutions
Why Purdue University is one of the most important engineering of schools of the world?
This is IE575 course, conducted at Purdue University. Our plc T100MD1616+ was selected to teach students about industrial automation. Some project pages of the link contain photos of projects contructed using our Super Plc.
More New Technologies
You can learn the classical concepts or you can innovate with new approaches in the changing world of industrial automation.
Extremely Low Cost
For the cost of a PLC you can buy a complete trainer with pushbuttons, suitches, relays, LEDs and power supply.
Didactic and Real
These PLCs are used for many multinationals. Anyone or any educational center can take his application to the real world.
More Control
Techniques
You can learn more technologies besides the classical ladder programming such as blocks or BASIC.
Could you imagine monitoring and controlling trough EXCEL ® ? You can also operate our PLCs over the Internet. Try robotics and telemetry
Yes, our training stations are fixable. We are aware that the learning process is associated to mistakes. In our PLCs all the chips are mounted on DIL Basis so you can remove/ replace defective chips for only few dollars
Students can begin to work with simple and smaller PLCs before using higher technologies or more expensive equipment.
Small projects
Industrial emergencies
Robotics
Replacing timers
Replacing counters
Replacing ladder logic
Y - Delta Motor starting
-
Small size and weight.
-
Extremely low cost
-
Portable
-
Easy to use
-
Industrial
-
Educational
- Our awarded programming software TRiLOGI.
- Simulator Tools
- Includes other PLC models.
- ON - LINE monitoring.
- Works in DOS
- No specific computer requirements
Hardware Features.
- PLC with 6 inputs / 4 outputs.
- 90 Programming steps
- 4 Timers
- 4 Counters
- 1 Sequencer of 32 steps
- 8 Internal relays
- 2 Internal outputs.
- Password protection.
- 4 Jumbo Indicating LEDs
- 2 Push buttons
- 4 Switches
- Protection fuse
- Fiberglass chassis
- 110 10%VAC connection.
- Connectors to interact with the real world.
- ON/OFF switch
- 24VDC and 110 VAC supply available on connectors
- RS232C serial connection cable
Because it contains all what you need in a PLC, at affordable cost and in the same equipment.
- Robotics and Motion Control
- Complex control
- Industrial automation projects
- Automation emergencies
- Distributed control
- Internet/ethernet monitoring and control
- Data logging Low cost RTUs
- Fast development/protyping
- Other engineering disciplines
- Educational centers
Fast development/protyping
Other engineering disciplines
Educational centers
- Excellent cost.
- Inmediate industrial application.
- Super fast automation development.
- Software simulation.
- Programmable in ladder and BASIC.
- First internet ready PLC trainer station.
- Phone / modem support.
- Multiple protocols supported.
- You can write your own protocols.
- Excellent for complex tasks.
- Two motion channels included.
- Portable.
- Small weight and size
- Complete assembly with power supply
- Windows environment.
- Multiple windows
- Ladder and BASIC programming.
- Software simulator
- On-line monitoring and control
- Ethernet / Internet connectivity
- Easy program/debugging
- Internet server included
Hardware
- PLC with 8DC inputs and 8 DC outputs
- 8 analog input channels (0-5VDC) Configurable in 6 Ads and 2 DAs channels
- 2 high speed inputs (15Khz)
- 2 PWM outputs
- 4 interrupt inputs
- RS232 and RS485 ports
- Display of 2 lines 16 characters
- 64 Timers and 64 counters
- 256 internal relays
- Configurable PID
- 6016 words of memory program
- 1700 words of EEprom memory.
- 4000 words of RAM memory
- 26 variables ( A to Z )
- Clock / Calendar (option)
- Expansion modules (40 I/ 40 O )
- Powerful instructions set for control
- 4 Jumbo Indicating LEDs
- 2 Push buttons
- 4 Switches
- Protection fuse
- Fiberglass base
- 110+- 10%VAC connection.
- Connectors to interact with the real world.
- ON/OFF switch
- 24VDC and 110 VAC supply available on connectors
- RS232C serial connection cable
Communication Capabilities
Modbus (110 a 500Kbps)
Omrom´s C20H protocol
Internet/ethernet EMIT 3.0
Control/ Monitoring through EXCEL
Fall 2000 - Automated Manufacturing System
http://gilbreth.ecn.purdue.edu/~ie575/f00/group1/Project_Overview
http://gilbreth.ecn.purdue.edu/~ie575/f00/group1/Pictures/Morephotos_ie575/PLC.bmp
http://gilbreth.ecn.purdue.edu/~ie575/f00/group2/Index2
http://gilbreth.ecn.purdue.edu/~ie575/f00/group3/
Fall 2002 IE 575
http://gilbreth.ecn.purdue.edu/~ie575/f02/focus/
http://gilbreth.ecn.purdue.edu/~ie575/f02/absolut/
http://gilbreth.ecn.purdue.edu/~ie575/f02/northstar/
http://gilbreth.ecn.purdue.edu/~ie575/f02/antkiller/frame.html
http://gilbreth.ecn.purdue.edu/~ie575/f02/fivestar/
Fall 2003 IE 575
http://gilbreth.ecn.purdue.edu/~ie575/f03/btg2/
http://gilbreth.ecn.purdue.edu/~ie575/f03/hexanotech/intro.htm
PLC programming course in Miami. The Florida University is about to launch regular courses for PLC programming using our equipments. If you want to attend one of these courses please "contact us " "
If you have bougth or you are buying our PTS T100 PLC trainers and you are an educational institution, you can get complete Run-time and development licenses of our SCADA completely Free! for more information please "contact us"
