PTS NANO |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |

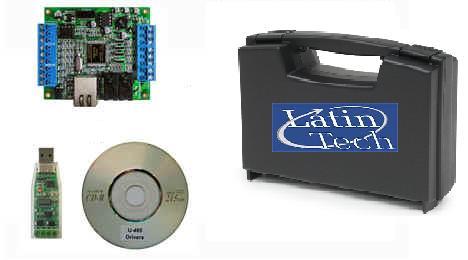

A simplified and affordable PLC trainer version of our PTS T100 and F100 models. |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
Ideal for those with some basic background on PLC. This is the coolest PLC with features that you only find in very expensive PLCs. |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U$ 538 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
Imagine a PLC with Ethernet/Internet connection that can be controlled using any browser (even from an Iphone) without writing a line a Javascript codes the software tool to make your graphic HMI trough internet is free. For the first time one PLC trainer that fits in the palm of your hand. |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U$ 550 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
Technical specifications
- PLC 4 inputs / 4 outputs DC
- 2 Analog I/O (12-bit, 0-5V)
- Two pushbuttons and 4 toggle switches
- Programming steps
- Main fuse and external fuse available
- Connector for wiring external devices
- Wall adapter power supply 110 VAC input
- Timers and counters
- Sequencer of 32 steps
- Programming and simulation software for ladder logic
- Online monitoring and control
- 1 Ethernet Port - Create your own webpage for control
- no internet programming required
- Support Modbus/TCP client and server.
- Email, Remote programming via the Internet.
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1. Using Nano-10 as Remote I/O host

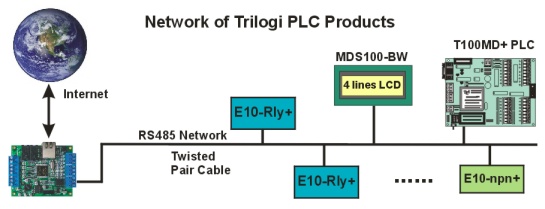

Since all TRiLOGI PLC products feature built-in RS485 port, the Nano-10 PLC can easily connect to a network of extremely low cost E10 or T100MD PLCs across a large facility. These remote PLCs can provide local control without supervision but can at the same time be controlled by the Nano-10. Multiple MDS100-BW LCD displays can also be accessed individually by the Nano-10 to display real time messages.
With a simple <CONNECT> command the Nano-10 can even connect to and communicate with all other Nano-10 or F-series PLCs via the Internet! |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
 |
|
| |
2. Providing User a Free HMI for your OEM Equipment
Since the Nano-10 built-in web services employs the AJAX technology for equipment control, it allows you to create a custom web page to control your equipment in no time and your user can then use any PC or smart phone (e.g. IPhone) web browser to view the equipment with graphical illustration. In fact you can even create several web pages and present the same data in different format to different user type (e.g. end user vs service technician).
Best of all, your user does not need to install any application on their PC or Iphone in order to view the operation of your equipment. So what they gain is a no-hassle, free Graphical HMI to interact with your equipment via the Internet! Imagine how much this capability would add to the competitive advantage of your equipment? |
|
|
| |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
| |
|
|
|
|
| |
3. Data logging and Control of MODBUS devices. Data can be logged to remote server via the Internet.
Nano-10 can issue Modbus-RTU or Modbus ASCII commands to access many industrial devices and sensors such as power meters connected to its RS485 port. This means it can readily acquire data from any instrument that understand Modbus protocol. In addition, since Nano-10 can open a client connection to a remote server, it can log the acquired data and store as data files in the remote PC. |
|
 |
|
|
|
|
|
|
|
| |
|
|
| |
| |
|
|
|
|
| |
|
|
 |
|
| |
4. Internet Accessible Home Control System
You can implement a small control system to directly control some equipment in your home and add an web page interface to it in no time. By communicating to a Z-wave base device via RS485/RS232 port you can even perform whole house control via the Internet. |
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If you want to learn about PLCs, you can order our book “Fundamentals of ladder logic and PLCs” or take our course ONLINE in www.onlinemediauniversity.com |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
