Variable Frequency Drives



For Basic Applications: The SCM Series

Integrated Line Filter: The SCL Series



For applications that don't require the advanced functionality of the SCF Series, the SCM is the right drive for simple speed control applications or as a superior alternative to reversing, soft-starting, or multi-speed motors.

Like all SC Series Drives, the SCM utilizes the innovative EPM memory module for fast, error free drive configuration.



Designed to meet Europe's noise (EMI and RFI) requirements, the SCL integrates a line filter into the drive package.This can eliminate the need for separate line filtering at the installation to comply with the installation standards.




PowerRange:
0.33 HP to 3 HP (0.25 kW to 2.2 kW)
VoltageRange:
Input: 230 volts 1Ø
Output: 230 volts 3Ø
Enclosure: IP20, optional
"thru-hole" mounting
Control I/O 11 isolated terminals:
Digital: 5 inputs, 1 open-collector
& 1 relay output
Analog: 2 selectable input

PowerRange:
0.33 HP to 15 HP (0.25 kW to 11 kW)
VoltageRange:
Input (1Ø): 120 (with internal
voltage doubler)
or 230 volts (3Ø): 230 or 480 volts
Output: 230 or 480 volts 3Ø
Enclosure: IP20, optional
"thru-hole" mounting
Control I/O 11 isolated terminals:
Digital: 5 inputs, 1 open-collector
& 1 relay output
Analog: 2 selectable input


SCL Series: Integrated Line Filter


SCM Series: Basic I/O

Reference Guide SCL




Full Featured: The SCF Series
DeviceNet network ready drive: The SCD Series


The SCF Series sub-micro drive offers features, ratings and voltages that are typically found only on much larger drives.

With the most features, smallest package and lowest cost for a DeviceNet compatible drive in the sub-micro category; the SCD simply offers the highest value to OEM's and Users that need a DeviceNet ready variable speed drive.

PowerRange:
0.25 HP to 30 HP (0.18 kW to 22 kW)
VoltageRange:
Input: 208 volt 1Ø to 590 volts 3Ø
Output: 208 volts to 590 volts 3Ø
Enclosure: IP20, optional "thru-hole" mounting
Control I/O 18 isolated terminals:
Digital: 5 inputs, 2 outputs
Analog: 2 inputs, 2 outputs
RS-485 serial communication (Modbus-RTU)

PowerRange:
0.25 HP to 25 HP (0.18 kW to 18.5 kW)
VoltageRange:
Input: 208 volt 1Ø to 590 volts 3Ø
Output: 208 volts to 590 volts 3Ø
Enclosure:IP20, optional "thru-hole" mounting
Control I/O 18 isolated terminals:
Digital: 5 inputs, 2 outputs
Analog: 2 inputs, 2 outputs
Pluggable DeviceNet network terminal block

Full Featured Sub-micro Drive


Reference Guide SCF
Quick Reference Guide


Sensorless Vector Motor Control:The TCF Series


The Unique EPM and EPM Programmer


For Applications that require wide speed ranges without loss of torque. The TCF offers superior performance in a compact package. Auto-tuning function simplifies set-up in vector mode. While in vector operation, the TCF can be configured to operate in either speed or torque mode.

PowerRange: 0.5 HP to 10 HP (0.37 kW to 7.5 kW) VoltageRange:
Input: 208 volt 1Ø to 590 volts 3Ø
Output: 208 volts to 590 volts 3Ø
Enclosure: IP20, optional "thru-hole" mounting
Control I/O 18 isolated terminals:
Digital: 5 inputs, 2 outputs
Analog: 2 inputs, 2 outputs RS-485 serial communication (Modbus-RTU)


The EPM (Electronic Programming Module) is a standard feature on all SC and TC series drives as described above and on the following product pages. This concept of a removable memory structure offers significant benefits for OEM's and users alike.
  • Copy drive settings in 2 seconds
  • Back-up programs to computer hard-drive or disk
  • Program without power
  • Simplify Troubleshooting and more..



SCD Series: for DeviceNet connectivity

Reference Guide TCF


The Easiest Program Method.



Enclosed Drives

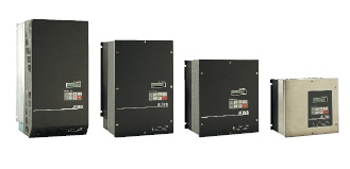

Micro Drives:  The MC Series

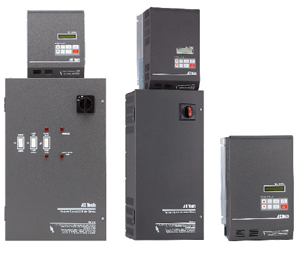

Building Automation and Control:  The MCH Series

A variable frequency drive that speaks your language, the MC Series LCD display lets you know the status of the motor and machine in easy to read English. Drive set-up is especially straight forward and intuitive. From ¼ hp to 60 hp the MC Series is ready to install, wire and put into operation. Standard products are available in steel enclosures rated from NEMA 1 to stainless NEMA 4X (IP21 to IP65). The MC is available for all major power supplies from 120 volt single phase (which outputs 230 volt three phase to the motor) to 590 volt. The MC Series drive is the top selling drive for operation of 575 volt motors in Canada!

Designed for HVAC Professionals, the MCH Series is an ideal solution for flow and volume control of fans, pumps and cooling towers. Variable frequency drives not only provide better regulation of the system (and thereby greater comfort), but save significant energy compared with traditional damper or valve systems.These NEMA 1 controls are available from 1/4 hp to 250 hp. "Contractor Ready" assemblies feature a hinged cover and installed options that can include a disconnect, fuses, line reactor and/or 3-contactor bypass.AC Tech has been serving the HVAC project market for over 15 years with tens of thousands of installations world-wide. Let us put you in contact with one of our HVAC representatives who will help you specify and bid your next project.


MC Series: Compact & Intuitive

MCH Series: The HVAC drive

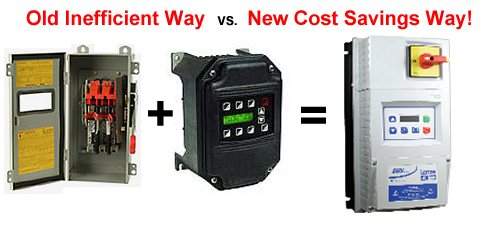

SMVector frequency inverter – NEMA 4X (IP65) with Integral DIsconnect




The SMVector with Integral Disconnect is available in a rugged NEMA 4X (IP65) indoor enclosure ideal for many industries including food / beverage, waste water, chemical metering and processing, pharmaceuticals and more… The integral disconnect switch offers the ability to isolate the motor for maintenance and servicing. Also – the disconnect switch handle is lockable and is made of red and yellow materials for high visibility.

The power ranges of the SMVector in NEMA 4X with Integral Disconnect include:

  • 120/240V – 1Phase Input, up to 1.5 HP (1.1kW)
  • 200/240V – 1 or 3 Phase Input, up to 3.0 HP (2.2 kW)
  • 200/240V – 3 Phase Input, up to 10 HP (7.5 kW)
  • 400/480V – 3 Phase Input, up to 10 HP (7.5 kW)
  • 480/600V – 3 Phase Input, up to 10 HP (7.5 kW)




For any additional information please CONTACT US, let us know what you need!!
