Industrial
Computer / HMI |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |

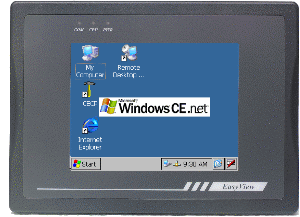

The NP-660S is a miniature and compact platform that is designed for the small-sized operator interface market. It has a 5.7" STN QVGA LCD display that offers a cost effective and powerful choice. At its foundation is an EP9315 200MHz ARM920T processor featuring low power consumption and high performance. With Portrait or Landscape display models. The NP-660S has a 10Base-T Ethernet port offering open communications. The NP-660S integrates Windows CE 4.2 (CE.NET) which expands its capabilities with vast embedded tools. Windows CE 4.2 features real-time capabilities, IE 5.5, RDP and custom programming with Visual Studio and C++. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
- 5.7" LCD Display (Portrait or Landscape)
- Analog resistive touchscreen
- NEMA 4 Front Panel
- CIRRUS LOGIC© EP9315 processor
- 1 Ethernet port
- 3 Serial ports
- 3 USB ports
- Fan-less construction
- 1 Compact Flash (CF) slot
- Platform SDK
|
|
- Display: 5.7" QVGA Color STN LCD (Portrait or Landscape)
- Resolution: 320 x 240
- Luminance: 150 cd/m2
- Contrast ratio: 30:1
- CIRRUS LOGIC© EP9315 200MHz ARM920T core processor processor
- 64 MB RAM
- 32 MB ROM
- 1 Compact Flash slot for application storage
- 3 Serial ports (2 RS232, 1 RS485 2W/4W)
- 3 USB ports (2 master, 1 client for active sync)
- 1 Ethernet port (10 Base-T)
- 16 bit sound output
- BQ3285 RTC
- NEMA 4 / IP65 Front Panel
- Power input: 24 VDC, 0.5A maximum
- Dimensions: (W x H x D) 204 x 150 x 48 mm (91." x 5.3" x 1.9")
- Weight: .8 kg (2.5 lbs)
- Operating temperature: 0-45 degrees C (32-113 degrees F)
- Relative humidity: 10%-90% @ 40 degrees C, non-condensing
- Shock (operation): 10-25Hz (X,Y,Z direction) 2G 30 minutes
- Approvals: FCC, CE, UL (pending)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CE 4.2 (CE.NET) Features
- Internet Explorer 5.5
- Real-time processing with 256 priority levels and nested interrupt support
- RDP Thin Client
- XML Web Services, SOAP, and WSDL
- Application programming with Visual Basic.NET, Visual C++, Visual J++, and Visual C#
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LT-Touchscreen CE Computer |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Windows CE® based computers are increasingly finding their way in the industrial automation world due to the fact that they do not need a hard disk and yet provide the benefits of the Windows world like Internet Browsers, etc. The LT-Touchscreen CE Computer is a 333 MHz CE Computer housed in the LT-Touch housing. It comes in 8 models including a 6” White on Blue display that allows us to offer a full fledged CE Touch Computer. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features |
|
|
|
|
Where Does It Make Sense? |
|
|
Hardware
• AMD Alchemy 333 MHz 32Bit Processor
• 32MB Flash and 64MB RAM built-in
• Compact Flash slot
• One 10/100 Base-T Ethernet port
• USB Host port
• 2 Serial ports, one RS232, second RS232/422/485
• 4 wire Analog resistive touch screen
• 24 VDC, 0.5 Amp for up to 10” models
• Network card option for future expansion
• Mechanical/hardware interface to build LTPC and LTI/O in the same housing, for future release.
• Choice of 8 displays
Software
• Windows CE.net® 4.2 Core preloaded in standard model with Compact Framework
• Windows CE.net® 4.2 Professional Plus preloaded in Enhanced model, with Internet Explorer and Viewer software
• SDK for Software Development |
|
|
|
|
If you like to write or use your own HMI/SCADA/Control software to use on a standard Windows CE® hardware, EZTouchScreen CE Computer is an ideal platform to consider. It has been designed to work reliably in an industrial plant versus just office environments. It has very low power consumption so that no fans or large heat sinks are required to maintain acceptable operating temperatures. This EZTouchScreen CE Computer will work from -10°C to 60°C for most models.
The Windows CE OS needs only 16-20 MB of memory as compared to 100+ MB for Windows XP or even XP embedded. Therefore, you can enjoy the benefits of the world of Windows without the use of moving media like a hard disc. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
LT-TCC-S6W-S |
|
LT-TCC-S6M-S |
|
LT-TCC-S6C-S |
|
LT-TCC-T6C-S |
|
|
|
|
(6” Mono White on Blue display, CE 4.2 ) |
|
|
(6” Mono Gray scale, CE 4.2 Core, Nema 4, 4x) |
|
(6” STN Color, CE 4.2 Core, Nema 4, 4x) |
|
(6” TFT Color, CE 4.2 Core, Nema 4, 4x) |
|
|
|
|
U$ 614 |
|
|
U$ 764 |
|
|
U$ 914 |
|
U$ 1214 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
LT-TCC-S8C-S |
|
|
LT-TCC-T8C-S |
|
LT-TCC-T10C-S |
|
LT-TCC-T15C-S |
|
|
|
|
(8” STN Color, CE 4.2 Core, Nema 4, 4x) |
|
(8” TFT Color, CE 4.2 Core, Nema 4, 4x) |
|
(10” TFT Color, CE 4.2 Core, Nema 4, 4x) |
|
(15” TFT Color, CE 4.2 Core, Nema 4, 4x) |
|
|
|
|
U$ 1314 |
|
U$ 1514 |
|
U$ 1814 |
|
U$ 2014 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications LT-Touchscreen CE Computer (pdf) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For
any additional information please CONTACT
US, let us know what you need!! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
