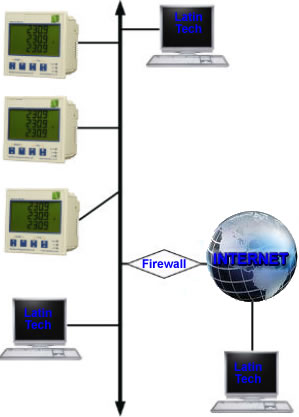

Network enabled for easy connection
cubeIP Meters are fitted with a standard RJ45 connector and use proven Network Protocols including Passive FTP & MODBUS TCP
Network Communications.

Readings are automatically transmitted to a remote server at preset intervals using passive FTP or SNMP protocols.
Read able with any Web Browser
With an integral web-site, a standard web browser is the only software necessary to access the Meter. 8 web pages, all customisable, provide
Meter readings & graphs; further pages can be added







Latin Tech

Embedded Software

Software needed for configuration & commissioning is built into the meter.

With SVG graphics, graphs & screens can be scaled and panned at will.

Real-time graphics

Using Java applets and SVG graphics, graph data can be easily scaled to any screen size and is constantly updated.

Read Meters across the Internet

Consumption for part of our site. With the correct permissions set, any meter can be read from anywhere.

Data Retention

Readings are stored within the meter at pre-set intervals. If network

communications are lost, readings are retained locally for later transmission




Read Gas and Water Meters

Digital Inputs are available as an option. If connected to the pulse
outputs of other meters, their readings are then available for
transmission.
Multiple access to all meters
With CubeIP Meters, multiple users can access the same Meter, reading different data at different rates
Local Alarms
Digital outputs, available as an option, can be programmed as
alarms — for excessive Demand, high Neutral Current, … ; any
Meter parameter can be used. These outputs can also be used for
local control. (2 outputs are available)





CUBE 400




Secure Data Backup

Each Meter can regularly transmit selected parameters to a remote
server. Parameters, transmission frequency and destination URL are
all freely programmable. Standard FTP protocol is used, thus ensuring free passage through firewalls
Data Export
An ‘Excel Web Query’ page allows direct import of selected data into
any standard desktop application – such as a spreadsheet or word
processor. This data can be automatically updated if required.






CUBE 350







Easy Installation

With metering and the network interface inside a
standard meter, installation is simple:
— The electrician understands the electrical connection
— The IT specialist understands the RJ45 connector
System Integration
Readings can be pushed by the Meters — using passive FTP
or SNMT protocols — or pulled, using MODBUS® TCP
Easy Retro-fit
CubeIP Meters are available for interface with the
special miniature split current sensors
Power Quality
CubeIP Meters are not just intended for Energy
Management. THD & the individual voltage and current
harmonic are also measured; as is Neutral Current, Current Demand, etc
SCADA and Process Control
With industry standard MODBUS® TCP protocol, CubeIP Meters can be easily integrated into most Process
Control Systems. Individual or multiple Registers can be
accessed and read by the software – every second if
necessary
Accurate Meter Reading & Billing
CubeIP Meters make Meter Readings available to any PC –
on the same network or anywhere over a link that can be
as secure as necessary. Individual Energy Registers can
be accessed and read by billing software – daily, weekly
or monthly as required, The possibility of errors – as can
occur where pulses are read and remotely counted – are
eliminated.




Latin Tech




DOWNLOAD BROCHURE CUBE


CUBE 400




• DIN 96x96 Standard Format
• True rms measurement to the 30th harmonic
Individual harmonics to the 15th
• Accuracy better than Class 1
• Isolated Pulse Outputs as standard
• RS485 MODBUS®
• IP54 Protection Category






Safe to Use
With fully isolated current inputs, installation safety is assured. This
allows the Cube 400 to be directly connected under certain conditions
and provides versatility of connection. Installation in conjunction with
other instrumentation can be carried out safely without affecting
accuracy and CTs can be earthed if required.
Easy to Install
The Cube 400 is fitted with large Rising Cage terminals – allowing
connection to a wide range of cables from 0.25mm2 to 4.0mm2
Easy to Configure
Cube400 Meters are configured from the front panel to suit
installations using Current and/or Voltage Transformers, with decimal
point and legend being automatically set to provide optimum
resolution.




    Resolution.
Easy to Commission — Right First Time
Wiring: With kW & PF displayed at the touch of a button,
installations can be quickly and simply tested – connections confirmed
& the load measured.
Pulse Outputs : With a Pulse Test facility, pulses can be generated
– without any load present – to test all downstream equipment.
Easy to Use
With a bold backlit 3 line custom LCD display, the Cube 400 can be
read from any angle, with the necessary legends simplifying reading.
Fully Supported
Comprehensive operating instructions - supplied with every Cube 400


  include full information on installation. These include connection
schematics and configuration details for virtually all CT ratios. Full
technical support is readily available from your local Distributor or
from Technical Sales at ND Metering Solutions.
Universality of Connections
For maximum convenience all Cube 400 Meters can be powered from
the measurement voltage. Where supplies may be subject to unusually
wide variations, the Meters may be powered from a separate auxiliary
supply. Standard Meters are suitable for both 3 wire and 4 wire 3f
unbalanced loads.
    Accurate Real World Measurement
A precision measurement system maintains full accuracy up to the 30th
harmonic (at 50Hz) in the presence of harmonics and randomly and/or
periodically interrupted waveforms - as commonly found on modern
electronically controlled loads.
RS485 MODBUS® Communications
A high speed internal RS485 MODBUS® communications option
allows readings to be read remotely. User assignable registers simplify
communications.

CUBE 350




· DIN 96x96 Standard Format
· Phase Indicator Lights IEC 60439
· True rms measurement to the 30th harmonic
Individual harmonics to the 15th via MODBUS
· Installation Aids – ‘Right First Time’
· Accuracy better than Class 1
· Isolated Pulse Output
· RS485 MODBUS® or TCP/IP Communications
· IP54 Protection Category
· Designed & Made in the UK with a 5 year Warranty


Resolution.
Easy to Commission — Right First Time
Wiring: With kW & PF displayed at the touch of a button,
installations can be quickly and simply tested – connections confirmed
& the load measured.
Pulse Outputs : With a Pulse Test facility, pulses can be generated
– without any load present – to test all downstream equipment.
Easy to Use
With a bold backlit 3 line custom LCD display, the Cube 400 can be
read from any angle, with the necessary legends simplifying reading.
Fully Supported
Comprehensive operating instructions - supplied with every Cube 400


Safe to Use
With fully isolated current inputs, installation safety is assured. This
allows the Cube 350 to be directly connected under certain conditions
and provides versatility of connection. Installation in conjunction with
other instrumentation can be carried out safely without affecting
accuracy and CTs can be earthed if required.
Easy to Install
The Cube 350 is fitted with large Rising Cage terminals – allowing
connection to a wide range of cables from 0.25mm2 to 4.0mm2
Easy to Configure
Cube 350 Meters are configured from the front panel to suit
installations using Current and/or Voltage Transformers, with decimal
point and legend being automatically set to provide optimum
resolution.








CUBE 400 AND CUBE 350

A new reality with LATIN-TECH



For any additional information please CONTACT US, let us know what you need!!
